Product: Akyapak AHS 30 86-100
Induction hardened, bearing mounted rolls, 3100mm working length, 100mm maximum plate thickness, 86mm maximum prebend thickness, 4 rolls double initial pinch action, mobile control panel on wheels.

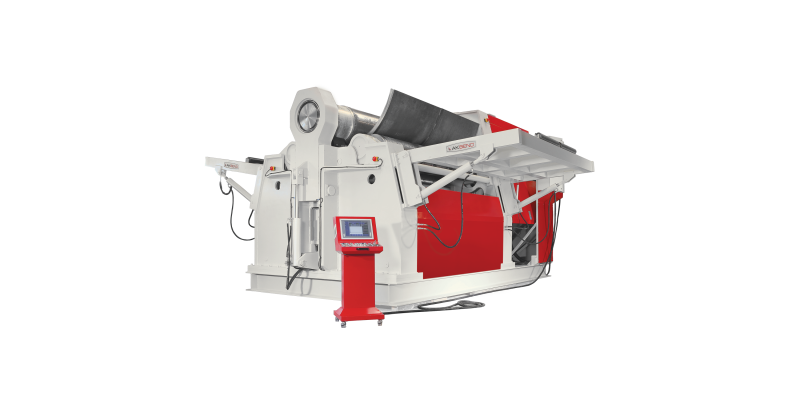

NEW Akyapak 30 86-100, 4 Roll Hydraulic Plate Rolling Machine.
Capacity
- 3100mm working length
- 100mm maximum plate thickness
- 86mm maximum prebend thickness
- 4 rolls, double initial pinch action
- 750mm top roll diameter
- 700mm bottom roll diameter
- 600mm side rolls diameter
Features and inclusions
- Induction hardened, bearing mounted rolls
- Centre roll driven with hydraulic motor and planetary gear box
- Two speed control
- Digital display for side roll
- Cone bending device, open/close operated from control panel
- Drop end operated from control panel
- Mobile control panel on wheels
General
- 132kW motor
- Dimensions: 7760 x 4100 x 3750mm (L x W x H)
- Weight: 81600kg
Optional Extra (available on request)
- Side and central supports for bigger rolling diameters
- Infinitely variable speed of rotation
- Oil cooler
