Product: Akyapak AHS 40 06-08
Induction hardened, bearing mounted rolls, 4100mm working length, 8mm maximum plate thickness, 6mm maximum prebend thickness, 4 rolls double initial pinch action, mobile control panel on wheels.

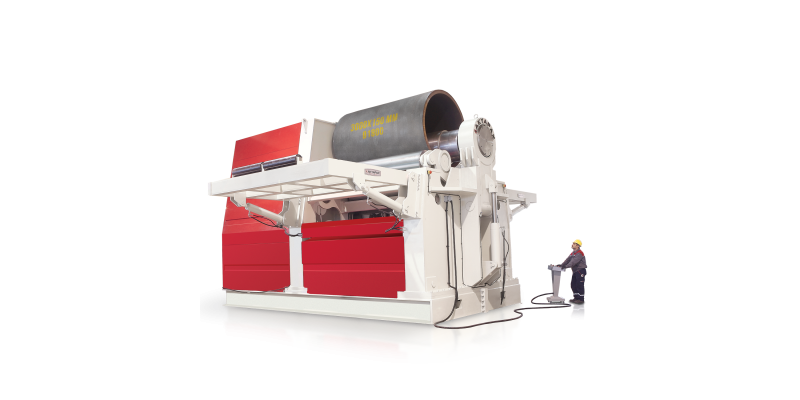

NEW Akyapak 40 06-08, 4 Roll Hydraulic Plate Rolling Machine.
Capacity
- 4100mm working length
- 8mm maximum plate thickness
- 6mm maximum prebend thickness
- 4 rolls, double initial pinch action
- 300mm top roll diameter
- 270mm bottom roll diameter
- 210mm side rolls diameter
Features and inclusions
- Induction hardened, bearing mounted rolls
- Centre roll driven with hydraulic motor and planetary gear box
- Two speed control
- Digital display for side roll
- Cone bending device, open/close operated from control panel
- Drop end operated from control panel
- Mobile control panel on wheels
General
- 7.5kW motor
- Dimensions: 6535 x 1490 x 1730mm (L x W x H)
- Weight: 9930kg
Optional Extra (available on request)
- Side and central supports for bigger rolling diameters
- Infinitely variable speed of rotation
- Oil cooler
