Product: Akyapak AHS 40 10-13
Induction hardened, bearing mounted rolls, 4100mm working length, 13mm maximum plate thickness, 10mm maximum prebend thickness, 4 rolls double initial pinch action, mobile control panel on wheels.

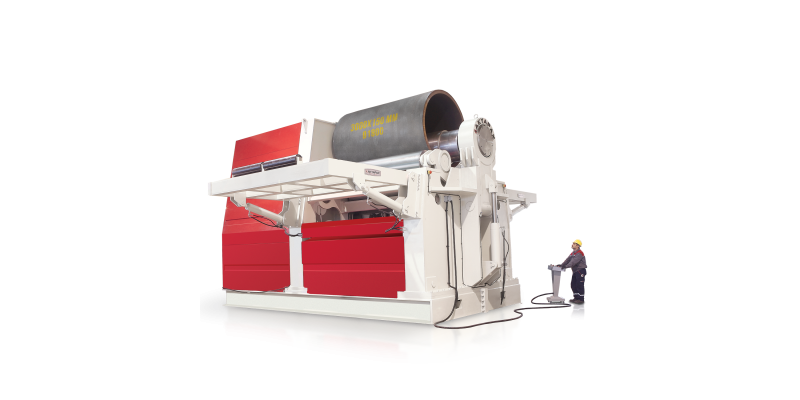

NEW Akyapak 40 10-13, 4 Roll Hydraulic Plate Rolling Machine.

Capacity

  • 4100mm working length
  • 13mm maximum plate thickness
  • 10mm maximum prebend thickness
  • 4 rolls, double initial pinch action
  • 360mm top roll diameter
  • 330mm bottom roll diameter
  • 250mm side rolls diameter

Features and inclusions

  • Induction hardened, bearing mounted rolls
  • Centre roll driven with hydraulic motor and planetary gear box
  • Two speed control
  • Digital display for side roll
  • Cone bending device, open/close operated from control panel
  • Drop end operated from control panel
  • Mobile control panel on wheels

General

  • 11kW motor
  • Dimensions: 6550 x 1680 x 1900mm (L x W x H)
  • Weight: 16000kg

Optional Extra (available on request)

  • Side and central supports for bigger rolling diameters
  • Infinitely variable speed of rotation
  • Oil cooler
