Product: Akyapak APK 50
50x5mm leg out angle iron up to 1000mm diameter, 50x5mm leg in angle iron up to 1200mm diameter, special steel shafts, hardened

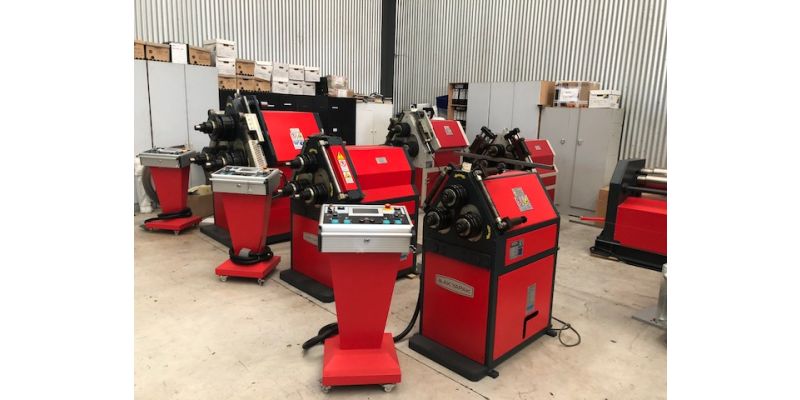

NEW Akyapak APK 50 Section and Pipe Rolling Machine.
Capacity
- Angle iron (leg out): 50 x 5mm - 1000mm diameter
- Angle iron (leg in): 50 x 5mm - 1200mm diameter
- Flat bar (on edge): 50 x 15mm - 1000mm diameter
- Flat bar: 80 x 16mm - 1200mm diameter
- Round tube dia.70x2mm, minimum dia 1600mm
- Round pipe dia 60.3x3.2mm to minimum dia 1000mm
Features & Inclusions
- Set of standard rolls
- Special steel shafts, hardened and ground
- Hydraulic up/down for lower rolls
- Digital display for lower rolls
- Horizontal and vertical working positions
- Guide rolls
- CE certified
- Roving control panel with foot pedal
General
- Motor power: 1.1kW
- 157mm diameter of rolls
- 50mm shaft diameter
- Dimensions: 950 x 1000 x 1450mm (L x W x H)
- Weight: 500kg
Optional Extras (available on request)
- Special rolls for tube/pipe profiles
- Spiral bending device
- Variable speed rotation
Akyapak is a premium European manufacturer from Turkey, and their quality products are built without compromise.
