Product: Akyapak ASM-S 140-20-4
ASM-S series asymmetric plate bending machines are robust and power, with a fully welded steel frame. The top and lower rolls are driven by an electric motor, gearbox and gear system. This machine has a 2100mm maximum working length with 5mm material capa

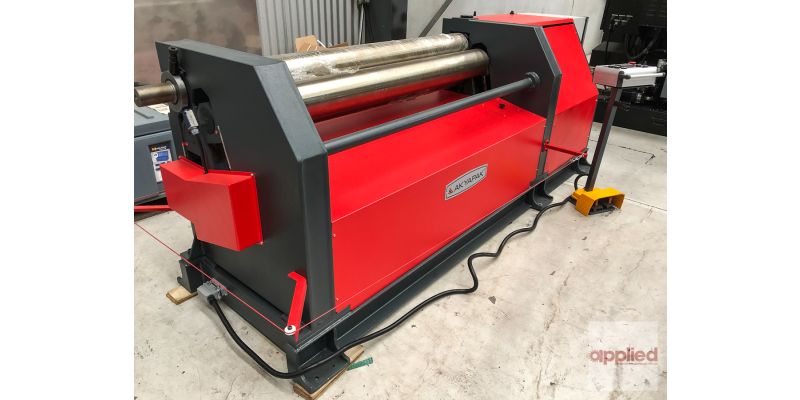

NEW Akyapak ASM-S 140-20-4 Plate Rolling Machine.
Machine Specifications:
- 2100mm working length
- 4mm prebending capacity
- 5mm maximum thickness
- 140mm top roll diameter
- 210mm minimum bending diameter
- 2.2kW motor power
- 6.8m/min bending speed
- 4000 x 1130 x 900 machine size (L x W x H)
- 1780kg machine weight
ASM-S series asymmetric plate bending machines are robust and power, with a fully welded steel frame. The top and lower rolls are driven by an eletric motor, gearbox and gear system.
Standard features:
- Induction hardened rolls
- Motorised back roll
- Cone bending device
- Asymmetic working principle
- Top roll can be swiveled out
- Separate, movable control panel
- CE & ISO9001 production quality
