Product: Akyapak ASM-S 170-15-7
ASM-S series asymmetric plate bending machines are robust and power, with a fully welded steel frame. The top and lower rolls are driven by an eletric motor, gearbox and gear system. This machine has a 1600mm maximum working length with 8mm material capac

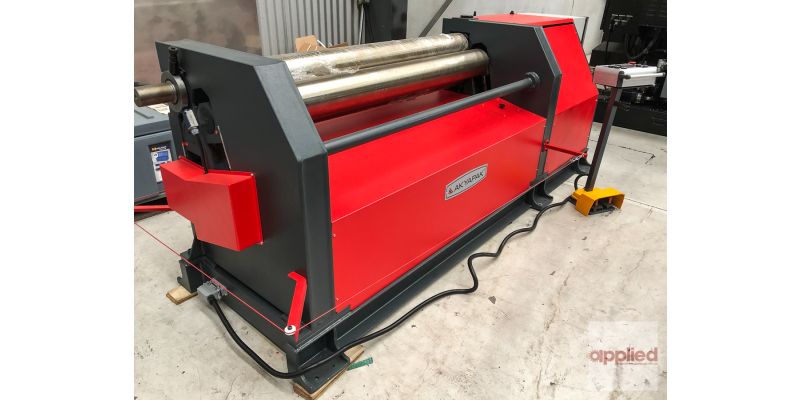

NEW Akyapak ASM-S 170-15-7 Plate Rolling Machine.
Machine Specifications:
- 1600mm working length
- 7mm prebending capacity
- 8mm maximum thickness
- 170mm top roll diameter
- 255mm minimum bending diameter
- 4kW motor power
- 4.5m/min bending speed
- 3300 x 1130 x 1100 machine size (L x W x H)
- 2310kg machine weight
ASM-S series asymmetric plate bending machines are robust and power, with a fully welded steel frame. The top and lower rolls are driven by an eletric motor, gearbox and gear system.
Standard features:
- Induction hardened rolls
- Motorised back roll
- Cone bending device
- Asymmetic working principle
- Top roll can be swiveled out
- Separate, movable control panel
- CE & ISO9001 production quality
