Product: Applied Water Cooled Chiller

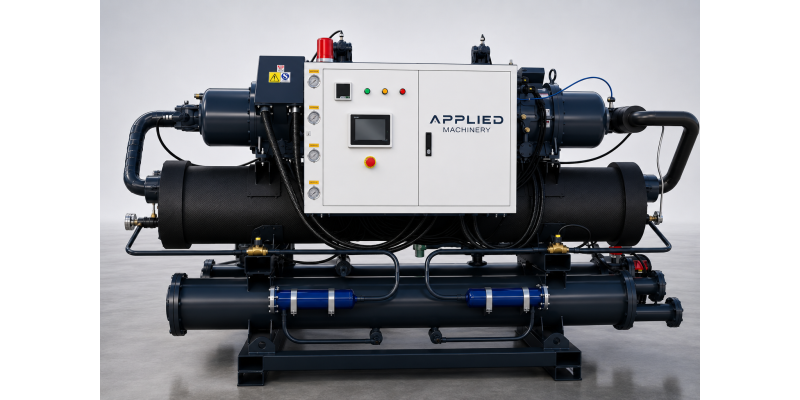

Applied Water Cooled Chiller - AWCC-1200
Toggle Nav
Applied Water Cooled Chiller
Key Features
Features Include:
- Electronic digital expansion valve
- Shell and tube evaporator
- Semi-hermetic Screw compressor x 2
- VFD starting method (30-60Hz)
- 283.2kW power requirement
- 473.8 Amps Operating current
- 1422kW Cooling capacity (at chilled water outlet 10 degrees)
- 362 m3/h cooling water flow in Condensor
- 1705 kW of heat transfer in Condenser
- 308 m3/h chilled water flow in Evaporator
- 1422 kW of heat transfer in Evaporator
- PLC touch Screen
- 5-22oC Temperature Control via PLC
- ±1oC Temperature Accuracy
- 415v/50hz/3phase
- R513a gas
- Dimensions: 6450x1760x2360mm (LxWxH)
- Approximate Weight: 6000 Kgs
