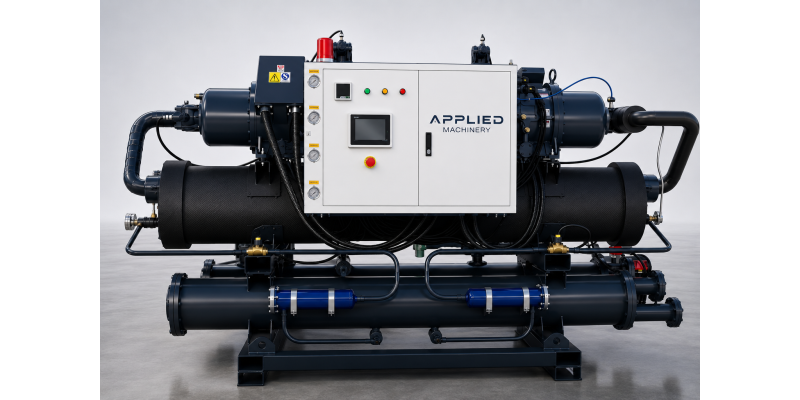

Applied Water Cooled Chiller - AWCC-180
Toggle Nav
Applied Water Cooled Chiller
Key Features
Features Include:
- Electronic digital expansion valve
- Shell and tube evaporator
- Semi-hermetic Screw compressor
- VFD starting method (30-60Hz)
- 51.1kW power requirement
- 86.1 Amps Operating current
- 246.3kW Cooling capacity (at chilled water outlet 10 degrees)
- 69 m3/h cooling water flow in Condensor
- 297.4 kW of heat transfer in Condenser
- 55 m3/h chilled water flow in Evaporator
- 246.3 kW of heat transfer in Evaporator
- PLC touch Screen
- 5-22oC Temperature Control via PLC
- ±1oC Temperature Accuracy
- 415v/50hz/3phase
- R513a gas
- Dimensions: 3500x1050x1600mm (LxWxH)
- Approximate Weight: 1720 Kgs
