Bossray MC-400CNC Coldsaw
More Information
We aim to get back to you as soon as possible

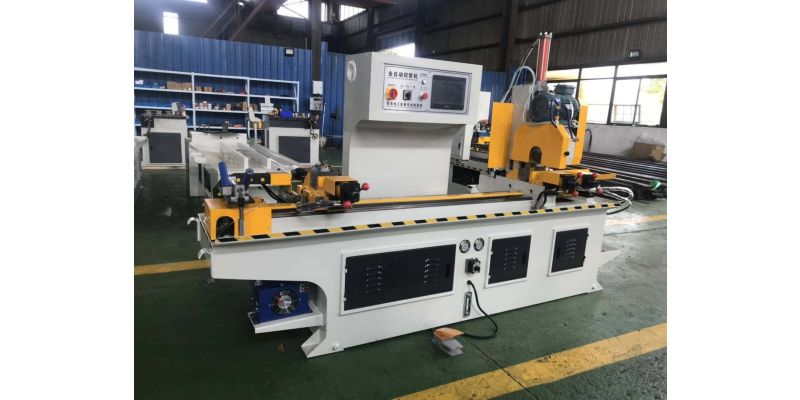

Bossray CNC Coldsaw with Auto Feed and Auto Mitre.
Main Technical Parameters
|
MODEL |
MC-400CNC |
|
|
Saw Blade Size |
Ø300~400 mm |
|
|
Head Swivel |
90º (+ - 45º) programmable |
|
|
solid round 55 |
mm |
|
|
solid square 45 |
mm |
|
|
round pipe 110 |
mm |
|
|
angle 95x95 |
mm |
|
|
sq pipe 85 x85 |
mm |
|
|
rect. pipe 95x65 |
mm |
|
Specifications:
|
MODEL |
|
MC-400CNC |
|
|
Main Drive Motor |
|
7-1/2HP(4 Pole) 50/60 HZ |
|
|
Blade Speeds |
|
50 HZ 800 RPM / 60 HZ 800 RPM |
|
|
Head Swivel |
|
programmable |
|
|
Clamping Vise |
|
Double |
|
|
Coolant Pump Motor |
|
1/8 HP or 1/4 HP |
|
|
Max. Clamping Capacity |
|
150 |
|
|
Saw Blade Size |
Diameter |
mm |
TIP Ø300-Ø400 Standard Ø350 |
|
|
Bore |
mm |
Ø25.4 |
|
|
Pin Holes |
mm |
-- |
|
Bar Feeding Length |
Single Stroke |
mm |
0-1500mm Servo motor complete cutting cycle |
|
|
Double Stroke |
Mm |
|
|
|
Three Stroke |
Mm |
|
|
Bar Feeding Servo Motor |
|
||
|
Hydraulic Pump Motor |
|
3HP 4P |
|
|
Operation Pressure |
|
20 - 30 kg/cm2 |
|
|
Machine Dimensions (LxWxH ) |
mm |
3000x1250x2200 |
|
|
Packing Dimensions (LxWxH) |
mm |
3200x1350x2250 |
|
|
|
inch |
126" x 53" x 89" |
|
|
Net Weight |
|
1700 kg (3748 lbs) |
|
|
Gross Weight |
|
1900 kg (4189 lbs) |
|
