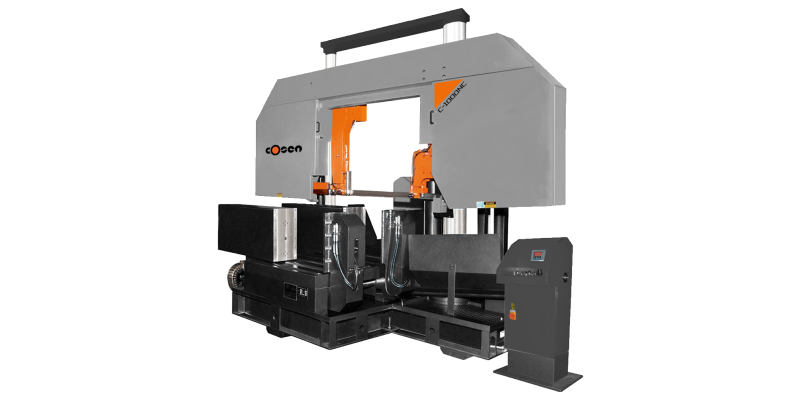

Product: Cosen C-1000NC Bandsaw
1000mm capacity (round, square, rectangle), comes with automatic feed, smart SNC-100 controller, nesting fixture, chip conveyor, pressure regulator and more.

NEW Cosen C-1000DMNC Programmable NC Double Mitre Cutting Bandsaw.

Features include:

  • Programmable controller with large job memory
  • Automatic kerf compensation
  • PLC controls all electric and hydraulic functions including; down feeds, vices, blade tensioner and nesting vice
  • Hydraulic chip conveyor and cleaning hose
Capacity at 90 degrees:
  • 520 x 1020mm rectangle
  • 660mm round
Capacity at 45 degrees:
  • 520 x 620mm rectangle
  • 620mm round
Capacity at 60 degrees:
  • 540 x 400mm rectangle
  • 400mm round
  • 8300 x 54 x 1.6mm blade size
  • Variable speed 20-100m/min
  • 810mm table height
  • Nesting fixture
  • Hydraulic powered chip conveyor
  • Bi-metallic blade
  • Automatic wedging resistance
  • One spot full stroke top clamp
  • Motor power: 7.5kW
