Product: Cosen SH-8580D Bandsaw
800mm round, 800 x 850mm rectangle, 15-80m/min, hydraulically controlled blade tensioner, roller workbed for ease of material loading, positioning and unloading

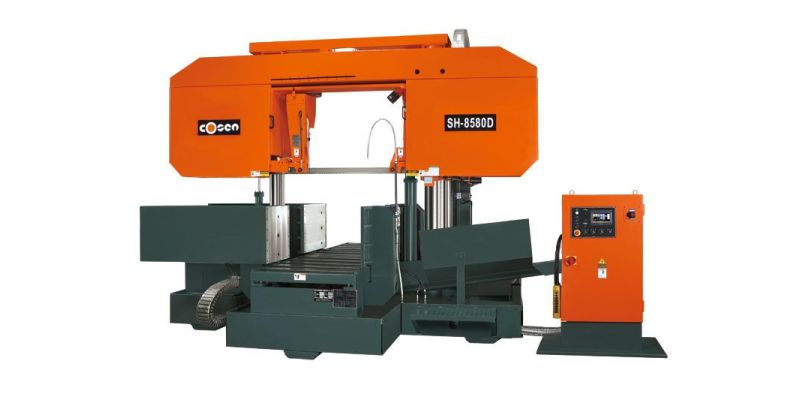

NEW Cosen SH-8580D Semi Automatic Heavy Duty Bandsaw.

Features and inclusions:

Maximum Capacity

  • Round: 800mm
  • Square: 800mm
  • Rectangular(H x W): 800 x 850mm

Saw Blade

  • Size: 8300 x 67 x 1.6mm (LxWxT)
  • Speed: 15-80m/min
  • Tension: Hydraulic Controlled
  • Guide: Tungsten Carbide Blade Guide (Hydraulic Clamping Force)
  • Cleaning: Electric Power Driven Wire Brush

Motor Output

  • Blade: 10 HP (7.5 KW)
  • Hydraulic: 3 HP (2.2 KW)
  • Coolant: 0.25 HP (0.19 KW)
    • Tank Capacity

      • Hydraulic Oil: 100L
      • Coolant: 120L
      • Independant machine control panel
      • Automatic blade tensioning device
      • LED digital blade speed monitor
      • Intregrated coolant
      • Hydraulic vice control
      • Oversized, precision ground dual column design with cross links to enhance structural strength
      • Split vice
      • Double Sided Material Feeding


      • Machine Weight: 6500kg
      • Machine size: 2330 x 3890 x 2940mm (LxWxH)
