The C 22 GEN2 High-Performance Line machining centre has the same collision circle as the C12 but with a longer traverse paths and larger component dimensions – and that means a huge degree of flexibility.
Short process cycles, quick workflows and the highest possible machine dynamics: The flexible C 22 GEN2 machining centre is ideal for machining high-quality parts with excellent accuracy and small tolerances.
This High-Performance Line model has a number of highlights to offer, e.g. height-adjustable control panel and space-saving deployment of the chip conveyor.
The especially flexible machining centre can be transported without dismantling and set up without a foundation.

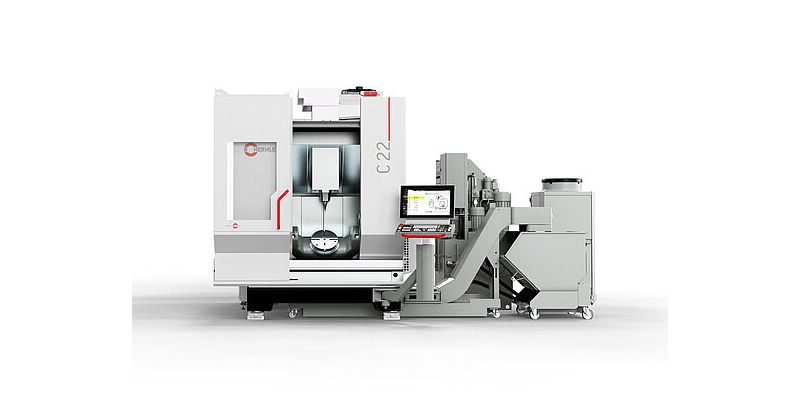

NEW Hermle C 22 Gen2 5-Axis Machining Centre.
Features include:
- Traverse path: 450 x 600 x 330 mm
- Body: Ø 450 / H 370
- Collision circle: Ø 610 mm
- Vertical table clearance: max. 470 mm
- Rotational speed: 15000/16000/20000/25000/30000/42000 1/min
- Rapid traverse linear X-Y-Z : 30 (50) m/min.
- Swivelling rotary table: ø 320 mm
- Max. table loading: 300 kg
The two control systems which can be used with the C 22 GEN2 are the Heidenhain TNC7 and Siemens SINUMERIK ONE. They feature a variety of configurations and functionalities – including tools for improving precision for rotary and swivel operations, shell transformation and transparent tool management.
