The C 250 Gen2 is the entry-level model into the world of 5-axis milling – and into the HERMLE Performance Line
Thanks to the wide-reaching swivelling range of the workpieces in the working area, the exploitation of the full traverse range and the large collision circle between the table sections, the C 250 GEN2 has the largest working area in relation to the installation area. And it is constructed for everyday use.
This machining centre with 5-axis milling capability can be transported without being dismantled and set up without a foundation.

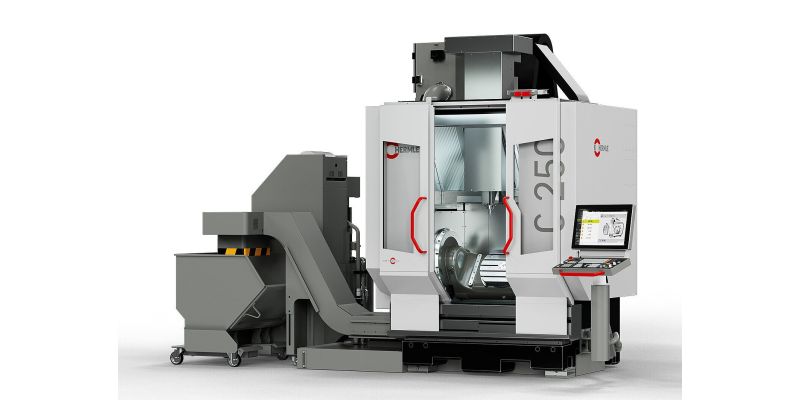

NEW Hermle C 250 Gen2 5-Axis Machining Centre.
Features include:
- Traverse path: 600 x 550 x 450 mm
- Body: Ø 450 / H 355 mm
- Collision circle: Ø 770 mm
- Vertical table clearance: max. 550 mm
- Rotational speed: 15000/16000/20000 1/min
- Rapid traverse linear X-Y-Z : 35 m/min.
- Rigid clamping table: 800 x 616 mm
- Max. table loading: 1100 kg
The Heidenhain TNC7 is the control systems used in the C250 Gen2. It features free contour programming and functions for fast 3D machining as well as a trackball, USB and Ethernet interfaces.
