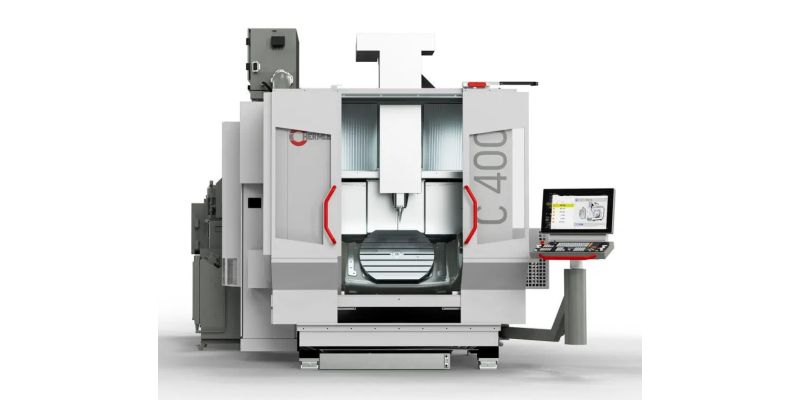

Hermle C 400 Gen2 5-Axis Machining Centre
More Information
We aim to get back to you as soon as possible
The C 400 GEN2 is a dynamic and economical machining centre designed for 5-axis / 5-sided machining and in the HERMLE Performance Line
The mineral cast low-vibration machine bed ensures that the C 400 GEN2 has the required static stability.
A host of features offers a high cutting volume with enormous precision and an optimum surface finish and can be ergonomically adapted to the respective machine operator – thereby ensuring optimum ease of use.
This machining centre for 5-axis / 5-sided machining can be transported without being dismantled and set up without a foundation.
NEW Hermle C 400 Gen2 5-Axis Machining Centre.
Features include:
- Traverse path: 850 x 700 x 500 mm
- Body: Ø 650 / H 500 mm
- Collision circle: Ø 885 mm
- Vertical table clearance: max. 625 mm
- Rotational speed: 15000/16000/20000 1/min
- Rapid traverse linear X-Y-Z : 35 m/min.
- Rigid clamping table: 1070 x 700 mm
- Max. table loading: 2000 kg
The C 400 GEN2 is equipped with a Heidenhain TNC7 control that offers various program functions, making programming and operation even easier with extensive additional features.
