Hermle C 52 / C 52 U MT 5-Axis Machining Centre
More Information
We aim to get back to you as soon as possible
The C 52 High-Performance Line machining centre is a flexible multi-talent with an especially large working area and a very small footprint.
Workpieces weighing up to 2000 kg can be machined in 5 axes simultaneously – with unbeatable precision and accuracy. They work especially well in in demanding industries such as machine construction, the automotive sector and aerospace.
Ample dimensions, high-performance spindle drives and many useful innovations for practical work turn the C 52 / C 52 U MT machining centre into a top performer.
This high-performance machining centre can be transported without being dismantled and set up without a foundation.

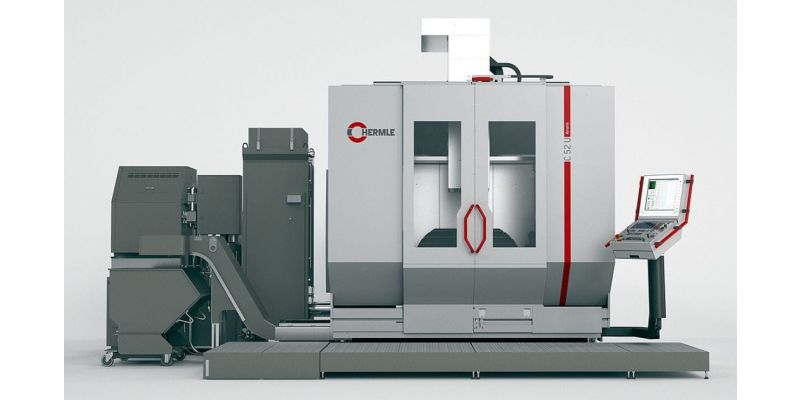

NEW Hermle C 52 5-Axis Machining Centre.
Features include:
- Traverse path: 1000 x 1100 x 750 m
- Body: Ø 1100 / H 810 mm
- Collision circle: Ø 1290 mm
- Vertical table clearance: max. 950 mm
- Rotational speed: 9000/14000/18000 1/min
- Rapid traverse linear X-Y-Z : 60–60–55 m/min.
- Swivelling rotary table: ø 1000 mm
- Max. table loading: 2000 kg
The two control systems which can be used with the C 52 GEN2 are the Heidenhain TNC 640 / TNC7 and Siemens S 840 D. They feature a variety of configurations and functionalities – including tools for improving precision for rotary and swivel operations, shell transformation and transparent tool management.
