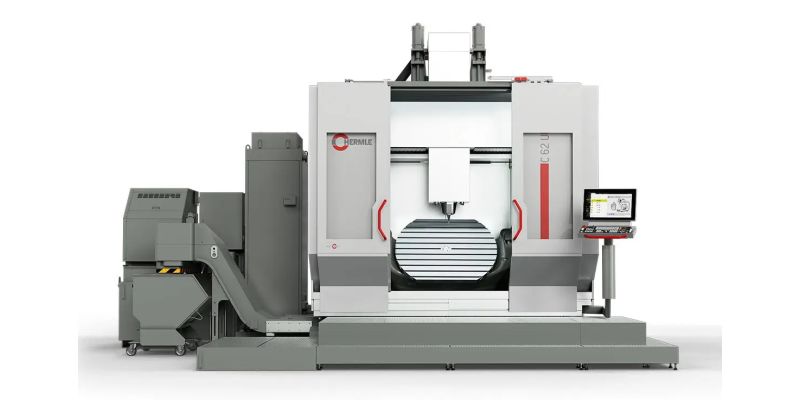

Hermle C 62 / C 62 U MT 5-Axis Machining Centre
More Information
We aim to get back to you as soon as possible
The C 62 High-Performance Line machining centre is the "State of the Art" CNC machining centre for the efficient machining of CNS milled parts and CNC turned parts.
Numerous features ensure high-precision and cost-effective working on workpieces up to 2500 kg in weight.
This high-performance machining centre can be transported without being dismantled and set up without a foundation.
NEW Hermle C 62 5-Axis Machining Centre.
Features include:
- Traverse path: 1200 x 1300 x 900 mm
- Body: Ø 1200 / H 900
- Collision circle: Ø 1400 mm
- Vertical table clearance: max. 1100 mm
- Rotational speed: 9000/14000/18000 1/min
- Rapid traverse linear X-Y-Z : 50m/min.
- Swivelling rotary table: ø 1350 x 1100 mm
- Max. table loading: 2500 kg
The two control systems which can be used with the C 62 GEN2 are the Heidenhain TNC 640 / TNC7 and Siemens S 840 D. They feature a variety of configurations and functionalities – including tools for improving precision for rotary and swivel operations, shell transformation and transparent tool management.
