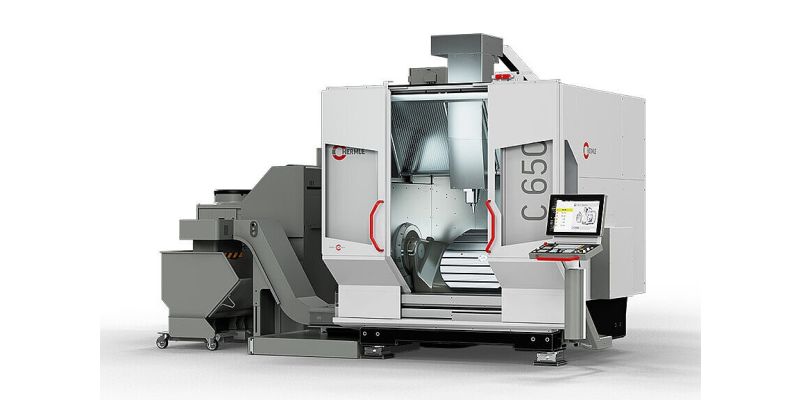

Hermle C 650 Gen2 5-Axis Machining Centre
More Information
We aim to get back to you as soon as possible
The C 650 GEN2 sets new standards in terms of the traverse path and load in the HERMLE Performance Line.
The top speed of the linear rapid traverses is 35 m/min.
Suitable for use in a wide range of applications - from machine construction to precision mechanics, from medical engineering to energy production, from the aerospace and automotive industry to tool and mould construction and the general subcontractor industry.
This machining centre for 5-axis / 5-sided machining can be transported without being dismantled and set up without a foundation.
NEW Hermle C 650 Gen2 5-Axis Machining Centre.
Features include:
- Traverse path: 1050 x 900 x 600 mm
- Body: Ø 900 / H 600 mm
- Collision circle: Ø 1100 mm
- Vertical table clearance: max. 775 mm
- Rotational speed: 15000 / 16000 / 20000 1/min
- Rapid traverse linear X-Y-Z : 35 m/min.
- Rigid clamping table: 1250 x 982 mm
- Max. table loading: 3000 kg
The C 650 GEN2 is equipped with a Heidenhain TNC7 control that offers various program functions, making programming and operation even easier with extensive additional features.
