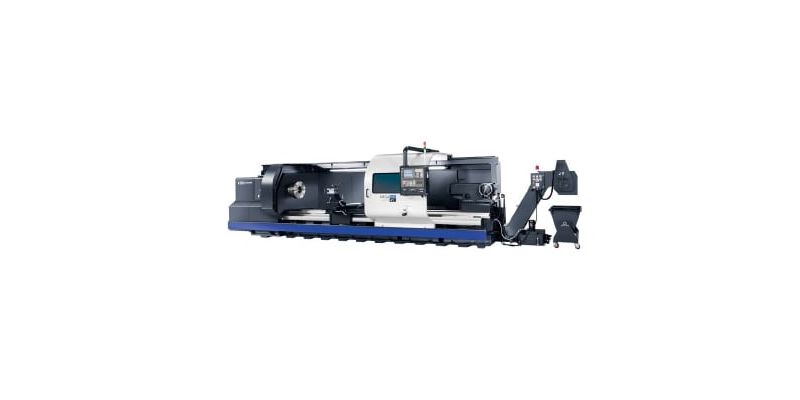

Product: Hwacheon MEGA-130 CNC Lathe
HEAVY DUTY HORIZONTAL CNC LATHE. High Rigid Structure & Performance, Utmost convenience, Heavy duty cutting, High stability, Six bed sizes: 3 to 10 meters turning length

NEW Hwacheon MEGA-130 CNC Lathe

High Accuracy

  • Adoption of ball screw and servo motor
  • Easy checking for spindle speeds through spindle position encoder
  • Guarantee of repeatability ±5° by adoption of curvic toolpost

Utmost Convenience

  • Excellent operation & easy loading/ unloading work piece by convenient operation panel
  • Semiautomatic tailstock feeding device

Heavy Duty Cutting

  • Heavy duty cutting and precision turning by one piece fabricated bed & leg structure
  • High rigid headstock
    • Spindle through hole ∅155 mm: four point contacts with ball bearing, cylindrical roller bearing, angular bearing
    • Spindle through hole ∅255 mm: three point contacts with taper roller bearing
    • Spindle through hole ∅320 mm: three point contacts with taper roller bearing, double roller bearing
  • Ball screw
    • X-axis: ∅32 x 6 mm
    • Z-axis: ∅50 x 12 mm (3000T/4000T), ∅63 x 12 mm (5000T), ∅80 x 12 mm (6000T/7000T/8000T/10000T)
  • Guide way : Turcite

High Stability

  • Maintaining high accuracy by use of turcite laminated slide surfaces
  • Application of high pressure lubrication pump to guarantee perfect lubrication on slide surfaces
  • Prevention of operation error by lock type mono lever switch (Opt. Fixed MPG handle)

NC Controller

  • Siemens 828D (standard)
  • Siemens 840D
  • Fanuc 0iT-F
  • Fanuc 32i


Features include:

  • Swing Over Bed [mm]: Ø1,300
  • Max. Cutting Diameter [mm]: Ø920
  • Max. Cutting Length [mm]: 3,000 – 10,000
  • Max. Turning Dia. on Cross Slide [mm]: Ø920
  • Distance Between Centers [mm]: 3,000 – 10,000
  • Spindle Speeds [rpm]: 20 – 650
  • Main Motor Power [kW]: 56/37
