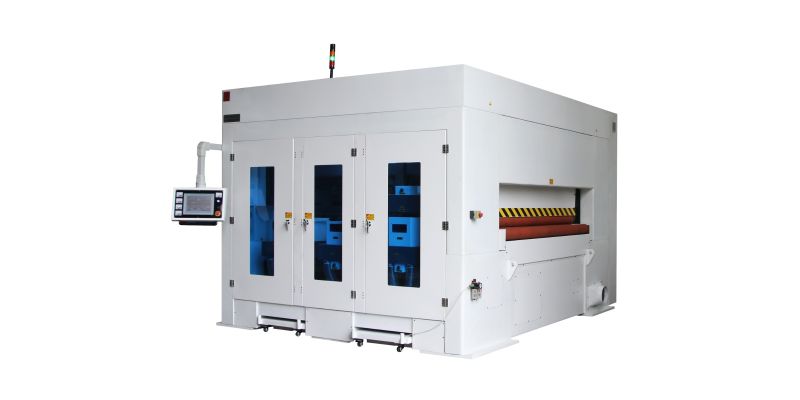

Jonsen SG1030-3TB+B SG2400-3TB+B Double-Sided Grinding System
More Information
We aim to get back to you as soon as possible
Efficient double-sided grinding system for flat parts for smart cutting centers in digital factories SG1030-3TB+B SG2400-3TB+B.
The core grinding mechanism adopts a patented "one-circle two-grinding chamfering deburring machine and deburring method", equipped with special elastic steel column abrasive box and elastic abrasive sheet abrasive box, only for the corners and hole edges of the workpiece. And clean automatic grinding, which can greatly reduce the strength of manual grinding and reduce the cost of consumables. It is suitable for batch high-load processing, and is very suitable for plasma, flame cutting, slag cleaning, etc.
SG1030-3TB+B for small pieces of intelligent sorting terminal - machine features:
- The high-rigidity welding frame is sandblasted as a whole.
- The conveying system adopts a unique design, and the hierarchical magnetic table is used for the front adsorption and back adsorption of the workpiece. Small pieces do not need to be turned over and processed on both sides.
- Set the opening of the equipment and batch processing through batch processing, which is simple and efficient.
- The core high-speed rotating parts are assembled with imported bearings
- Abrasive block design and manufacturing process
- Slag collection device and dust collection system, clean processing environment.
- Common consumables: elastic steel column abrasive box/elastic abrasive sheet abrasive box
- Models with a width of 1300 can be selected.
SG2400-3TB+B for large pieces of intelligent sorting terminal - machine features:
- The high rigidity welding frame is sandblasted as a whole.
- Set the opening of the equipment and batch processing through batch processing, which is simple and efficient.
- Heavy-duty pinch roller conveyor system
- The core high-speed rotating parts are assembled with imported bearings
- Abrasive block design and manufacturing process
- The slag collection device and dust collection system keep the processing environment clean.
- Common consumables: elastic steel column abrasive box/elastic abrasive sheet abrasive box
- Optional models with a width of more than 2400mm.
