Understanding CNC Beam Drilling

The CNC drilling machine has transformed the industry by providing exceptional accuracy, efficiency, and versatility. Engineered for heavy duty CNC drilling in large-scale operations, these machines are vital tools for fabricators and manufacturers everywhere, allowing for faster turnaround times and enhanced precision in high-demand projects. Specialized for drilling holes in beams, columns, and other structural components, beam drilling machines are indispensable in construction and structural engineering. Their ability to perform intricate tasks with high precision makes them essential for ensuring the integrity of structures.

For projects requiring high precision in drilling and processing large-scale structural components, beam line machines (also known as CNC beam drilling machines) are essential. These specialized machines combine advanced automation with CNC technology to efficiently drill, punch, and cut beams and columns with exceptional accuracy, making them indispensable in structural steel fabrication.

In addition to their standard capabilities, many modern CNC beam drilling machines now feature automation options that streamline the production process. These machines can also integrate with other systems, such as material handling and CAD software, offering even greater flexibility and control. With their ability to handle complex projects with ease, they continue to play a pivotal role in driving innovation across various industries.

While CNC beam drilling machines specialize in drilling operations, CNC milling machines, such as the Akyapak 3 ADM 1200, expand on this by offering a broader range of capabilities, such as cutting, shaping, and finishing complex parts. These machines can perform drilling, but they also enable drilling, tapping, milling, countersinking, and layout marking. With the ability to handle different materials and provide fine-tuned precision, CNC milling machines complement beam drilling by taking on more complex tasks, enhancing productivity in manufacturing environments that require a high level of versatility and precision.

You can scroll down to learn more, browse CNC drilling machines here, or check out the Akyapak 3 ADM 1200 here.

A CNC (computer numerical controlled ) drilling machine is an automated device that drills precise holes into various materials, following instructions from a computer program. Unlike manual drilling, where accuracy may vary, CNC drilling ensures precise positioning and depth due to its advanced software, which controls both the drill head's movements and operations. The process begins with creating a design using CAD (Computer-Aided Design) software, which generates detailed blueprints for the project. These designs are then converted into programs that CAM (Computer-Aided Manufacturing) software can interpret, guiding the machine on the specific actions to take during production. Using coordinate data and specific instructions, the system drills holes according to a predetermined layout, minimizing human error and enhancing both production speed and quality.

A CNC drilling machine consists of several key components that work together to ensure accurate and efficient drilling operations. These components work together, to allow CNC drilling machines to maintain their high precision, reliability, and general productivity.

• The Base: The foundation of the machine, providing support for the material and other components.
• The Spindle: A motor-driven rotating unit that holds the drill bit and cuts into workpieces. Its speed and movements are controlled by the CNC program.
• The Control Panel: The interface where operators input programs, monitor activities, and manage controls. It includes displays, input devices, and various settings.
• The Worktable: The platform where materials are securely clamped. It can move along multiple axes to position the material accurately beneath the spindle.
• The Electrical Control Unit: Contains the computer and electronic systems that execute operations based on CNC programs, regulating movements and functions.
• The Cooling System: Delivers cooling fluids to the drilling area using pumps and nozzles. This reduces heat during cutting, preventing tool wear and maintaining precision.
• The Drive Motors: Power the movement mechanisms along the machine's axes, ensuring precise positioning during drilling and other operations.
• The Automatic Tool Changer (ATC): Automatically switches between different tools or bits as specified by the program, enhancing efficiency and reducing downtime.

Beam drilling machines serve as critical tools across a variety of industries by enabling precise drilling in structural components. By consistently excelling in precision and efficiency, beam drilling machines are indispensable in sectors where accuracy and durability are essential. Their key areas of application include:

• Structural Engineering: Beam drilling machines are integral to creating accurate holes in beams, columns, and other structural profiles. These components are vital for building frameworks, bridges, and other load-bearing structures, where precision ensures structural integrity and safety.
• Fabrication Shops: These machines are essential for preparing steel components before assembly and welding. By drilling precise holes, they streamline processes, improve fit, and enhance the efficiency of manufacturing and assembly lines.
• Infrastructure Projects: Beam drilling machines play a vital role in large-scale infrastructure developments such as highways, railways, and tunnels. They are used to produce structural supports and foundations that meet the stringent specifications required for long-term durability in demanding environments.
• Shipbuilding & Offshore Industries: Beam drilling machines are employed for fabricating large structural elements used in ships, oil rigs, and other marine applications. Their precision is critical for ensuring the proper alignment of components in these complex structures.
• Power & Energy Sectors: In power plants, renewable energy facilities, and industrial setups, beam drilling machines contribute to the fabrication of support structures for heavy equipment and turbines, ensuring high performance and safety standards.

When selecting your milling machine, it’s always wise to choose something that’s both sturdy and versatile. That’s why we recommend the Akyapak 3 ADM 1200; a heavy duty CNC beam drilling machine that can be applied to many different uses across the various industries.

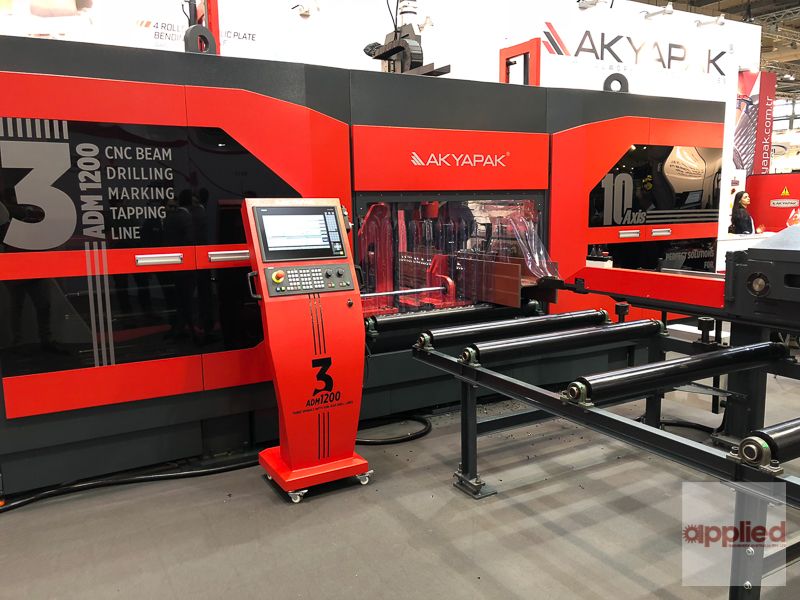

The 3 ADM features a cutting-edge three-spindle, 10-axis CNC beam drilling system designed for maximum efficiency and versatility. Unlike traditional drill lines, the 3 ADM stands out by performing multiple operations simultaneously, such as drilling, marking, tapping, milling, and countersinking, across different sections of a beam. This is achieved through the independent movement of each spindle along three axes, allowing simultaneous execution of tasks on various parts of the workpiece. With capabilities that include drilling, tapping, milling, countersinking, and layout marking, the 3 ADM effortlessly handles a wide range of materials, including beams, channels, tubes, angles, and plates. Its advanced functionality ensures seamless processing for even the most demanding fabrication needs.

The Akyapak 3 ADM 1200 is a high-performance CNC beam drilling machine, designed with advanced features to meet the most demanding fabrication needs. With its advanced design and excellent range of features, the 3 ADM 1200 is a reliable solution for enhancing productivity and precision in metal fabrication. Here's what has made it such an ideal choice across various operations:

• 10-Axis, 3-Spindle System: Independently controlled spindles allow simultaneous operations on different sections of the beam, boosting productivity and precision.
• High-Speed Drilling: Equipped with powerful servo motors for precise movements and high-speed spindle motors, the 3 ADM 1200 delivers exceptional drilling performance. Users can choose between Mitsubishi or Siemens motor systems.
• Automatic Tool Changer: Each spindle features an automatic tool changer with six stations, minimizing downtime and maximizing efficiency.
• Versatile Functionality: The machine can perform a variety of operations, including drilling, marking, tapping, milling, and countersinking, on diverse materials.
• Integrated Band Saw Technology: Built-in band saw capabilities enable precise cutting at various angles, enhancing flexibility and efficiency in production.
• Advanced Control System: Featuring a Mitsubishi controller and up to 16 axes, the machine ensures unmatched precision and operational control.
• Enhanced Safety Features: Safety fences with various configurations and interlocking doors protect operators. The system immediately halts operations if the interlocking door is opened.
• Robust Frame Design: Constructed with steel profiles and cast iron components, the machine's frame is designed using FEM simulation to ensure mechanical strength, vibration damping, and dimensional stability.

Delivering exceptional precision, speed, and versatility, heavy-duty CNC beam drilling machines are indispensable for modern metal fabrication. For reliable and high-performance CNC beam drilling solutions, the Akyapak 3 ADM 1200 (available through Applied Machinery in Australia) stands out as an excellent choice, especially for fabricators who are aiming to enhance their production efficiency. With cutting-edge features and outstanding performance, the 3 ADM 1200 is designed to meet the demands of even the most challenging fabrication projects. You can head over to the Applied Machinery homepage to check out our many other products and services.

Contact Applied Machinery today to discover how the Akyapak 3 ADM 1200 can revolutionize your fabrication process!
