Product: Microweily TY-1845S Lathe
458mm swing over bed, 288mm swing over cross slide, 640mm in gap diameter, 230mm centre height, 1145mm between centres, 2 axis Mitutoyo DRO

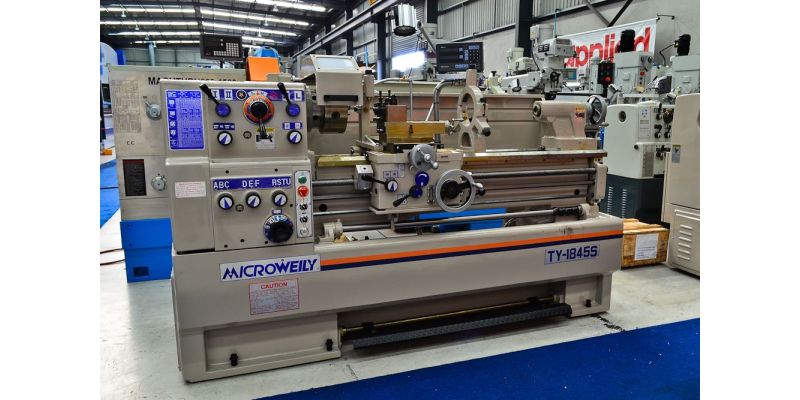

NEW Microweily TY-1845S Centre Lathe.

Features include:

  • 458mm swing over bed
  • 288mm swing over cross slide
  • 640mm in gap diameter
  • 230mm centre height
  • 1145mm between centres
  • 300mm bed width
  • 58mm spindle bore
  • D1-6 spindle nose
  • 30-2000rpm (12)
  • 150mm tailstock quill travel
  • MT4 tailstock taper
  • 7.5HP main motor
  • Mitutoyo 2 axis DRO
  • Steady rest
  • Follow rest
  • 3 jaw chuck, 4 jaw chuck and face plate
  • Rear splash guard
  • Headstock chuck guard with micro switch
  • Quick change tool post with 6 holders
  • Halogen lamp
  • Machine size: 2435 x 1077 x 1245mm
  • Machine weight: 1810kg
