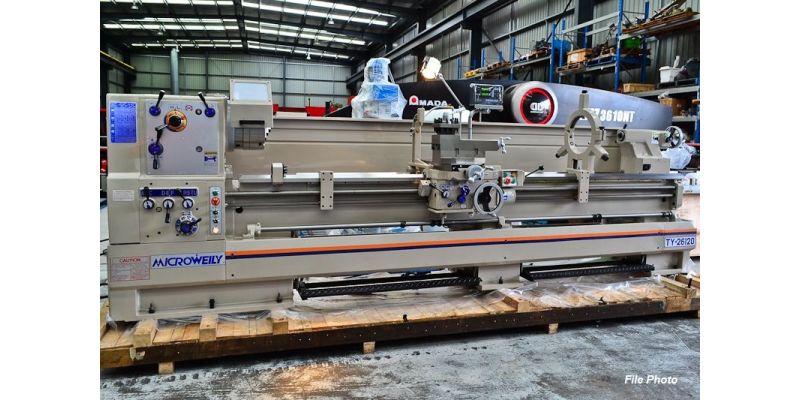

Product: Microweily TY-26160 Lathe
660mm swing over bed, 460mm swing over cross slide, 845mm in gap diameter, 330mm centre height, 4060mm between centres
NEW Microweily TY-26160 Centre Lathe.
Features and inclusions:
- 660 mm swing over bed
- 460 mm swing over cross slide
- 845 mm in gap diameter
- 330 mm centre height
- 4060 mm between centres
- 400 mm bed width
- 105 mm spindle bore
- D1-11 spindle nose
- 15-1200 rpm (12 speed)
- 75 mm tailstock quill diameter
- 160 mm tailstock quill travel
- MT5 tailstock taper
- 2 Speed Tailstock
- 15 HP main motor
- 1 x Follow rest
- 1 x Steady Rest (bearing shaft, 8"-15")
- 12" 3 jaw self centering chuck
- 18" 4 jaw independent chuck
- 24" Face Plate
- Rear splash guard
- Lead screw protector
- Headstock chuck guard with micro switch
- Halogen lamp
- Longitudinal rapid traverse
- Electrical panel and switch with CE approved
- Machine size: 4578 x 1280 x 1355 mm (LxWxH)
- Net machine weight: 3080 kg
- Gross Machine weight: 3390 kg
