Product: Pro-Plas 2040 (125 Hypertherm)
125A Hypertherm plasma source with 2000 x 4000mm sheet capacity, Starfire CNC controller, 12 months FastCAM Professional, THC height sensor, 25mm maximum material thickness

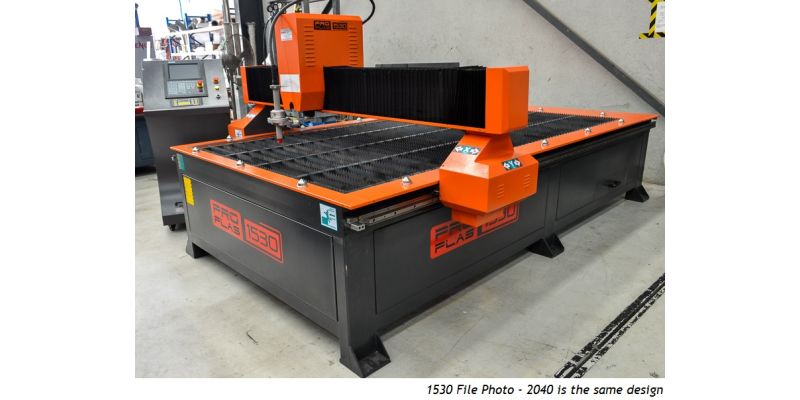

NEW Pro-Plas 2040 CNC Plasma Cutting System.

Features and inclusions:


Work Table & Gantry

  • 2000 x 4000mm sheet capacity
  • Dual rack and pinion drives
  • 10,000mm/min rapid travel
  • 50-8,000mm/min cutting speed
  • 150mm z-axis travel
  • 300mm inbuilt dust extraction fan
  • Hiwin linear guides (Taiwan)
  • Roller balls to assist with material loading and unloading

Cutting Head

  • Hypertherm cutting torch (USA)
  • 45 degrees right and left tilt
  • THC height sensor (Torch Height Control)

Plasma Source & Cutting Capacity

  • 125A Hypertherm Powermax (USA)
  • Pierce and cut up to 25mm mild steel
  • Maximum edge cut 38-44mm
  • Air or nitrogen assist gas

CNC Software

  • Fastcam Professional (Auto-Nesting)
  • Fontgen module (for simple alphanumeric character programming)
  • Save drawings to USB
  • All popular DXF and DWG files supported

CNC Control

  • Starfire CNC
  • 8" LCD colour display
  • USB input
  • Mobile console
  • Template library for quick and easy cutting of standard shapes and angles
  • Real-time cutting path

All new Pro-Plas CNC plasma cutting systems from Applied Machinery come with a $300.00 "starter pack" of consumables.
