Product: Proth PSGO-60150AHR Surface Grinding Machine
The Proth PSGO-60150AHR has a grinding surface of 600x1500mm and a spindle motor with 7.5kW/10HP, this machine achieves high precision with a superior surface finish.

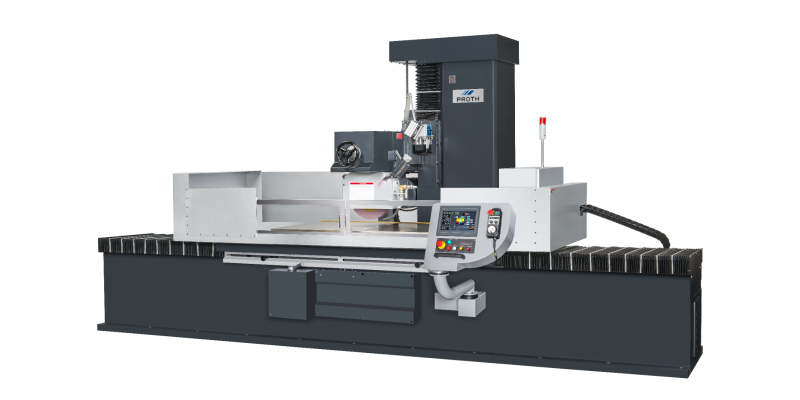

New Proth PSGO-60150AHR Surface Grinding Machine
General Capacity
- Max. travel (cross x longitudinal): 660x1650 mm
- Spindle center height from table: 700mm
- Max.height from table top to bottom of standard wheel: 522mm
- Grinding surface of table: 600x1500 mm
Longitudinal Movement
- Hydraulic table speed: 1-25 m/min
Cross Movement
- Intermittent cross feed-approx.(Electro-mechanical): 0.1-15 mm/feed
- Continuous cross feed-approx.(Electro-mechanical): 2000/2400 mm/min
- Hand feed per revolution: 5 mm
- Hand feed per division: 0.02 mm
Vertical Downfeed
- Rapid traverse approx.(option): 220 mm/min
- Hand feed per revolution: 0.25 mm
- Hand feed per division: 0.002 mm
Grinding Wheel
- Dimension(O.D x W x I.D): 355x50x127 mm
- Spindle speed(50/60Hz): 1500/1800 r.p.m.
Motor
- Spindle motor: 7.5kW/10HP
- Hydraulic motor: 3.7kW/5HP
