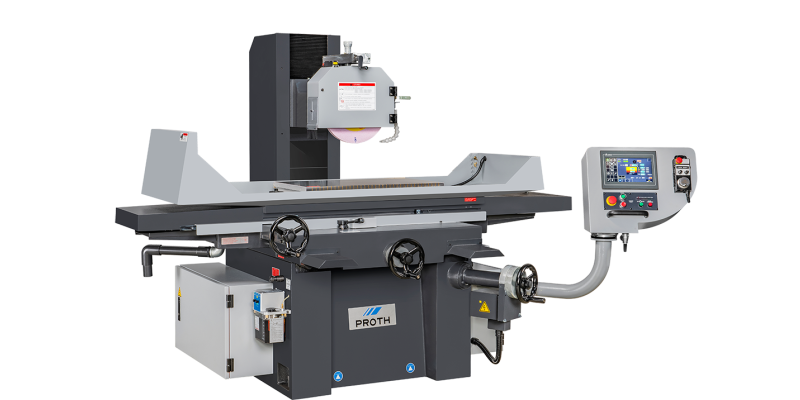

Product: Proth PSGS-4080AHR Surface Grinding Machine
The Proth PSGS-4080AHR has a grinding surface of 400x800mm and a spindle motor with 5.6kW/7.5HP, this machine achieves high precision with a superior surface finish.
New Proth PSGS-4080AHR Surface Grinding Machine
General Capacity
- Max. travel (cross x longitudinal): 460x900 mm
- Spindle center height from table: 600mm
- Max.height from table top to bottom of standard wheel: 422mm
- Grinding surface of table: 400x800 mm
Longitudinal Movement
- Hydraulic table speed: 1-25(0.3-25) m/min
Cross Movement
- Intermittent cross feed-approx.(Electro-mechanical): 0.1-10 mm/feed
- Continuous cross feed-approx.(Electro-mechanical): 1000 mm/min
- Hand feed per revolution: 4 mm
- Hand feed per division: 0.02 mm
Vertical Downfeed
- Rapid traverse approx.(option): 220 mm/min
- Hand feed per revolution: 1 mm
- Hand feed per division: 0.005 mm
Grinding Wheel
- Dimension(O.D x W x I.D): 355x38x127 mm
- Spindle speed(50/60Hz): 1500/1800 r.p.m.
Motor
- Spindle motor: 5.6kW/7.5HP
- Hydraulic motor: 2.2kW/3HP
