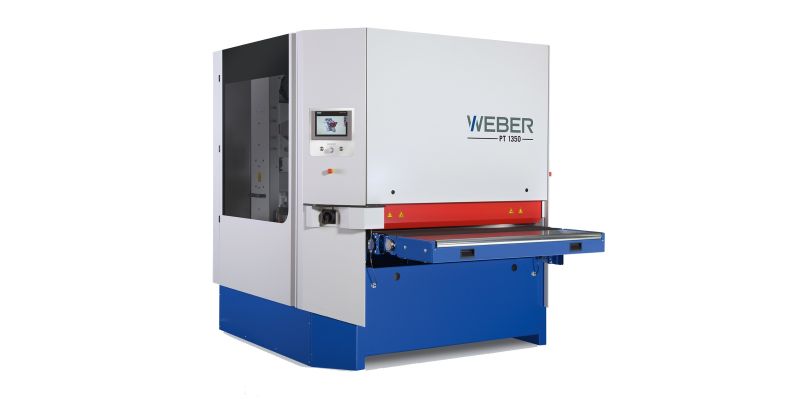

Product: Weber PT Series Deburring Machine
The WEBER PT is a universal grinding machine of a new generation for deburring, rounding, descaling and surface grinding of thin sheets and heavy plates. Up to 5 grinding stations allow for all machining variations. A CBF station can be installed for a perfect surface finish. A perfect bolt grinding beam is available especially for flame-cut and plasma-cut heavy plates.
WEBER PT – advantages at a glance:
- Modern design
- Simplified operating structure through WEBER “i-Touch” with its faster and more easily accessible operating panel
- Increased grinding belt length
- Laterally extendible planetary head unit and MRB unit for improved integration into production lines
- Improved accessibility for maintenance
- Replaceable units through the modular design for improved flexibility in case of changing requirements
- Simultaneous machining top/bottom as an option
Technical data
- Operating widths 1100, 1350 and 1600 mm
- Operating height 900 mm
- Version with 1 to 5 grinding stations
- Workpiece thickness 0.3–100 mm
- Infinitely adjustable feed speed
- Grinding belt length 2150 mm or 2620 mm
- Grinding belt drive up to 24 kW
- Siemens Multi Panel TP900 Comfort
- “i-Touch” controller
- Flexible arrangement of the grinding stations
