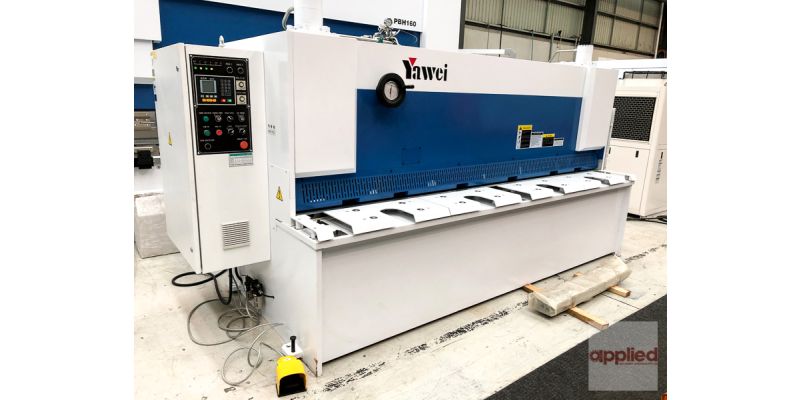

Product: Yawei HGS 13-4050 (E21S)
13mm x 4050mm capacity, Estun E21S control, 9spm, 10-1000mm backgauge stroke, rear sheet support system.

NEW Yawei HGS 6-5000 CNC Hydraulic Guillotine.

Features include:

  • 5000mm maximum shearing length
  • 6mm sheet capacity (ms)
  • 12 strokes per minute
  • 10-1000mm backgauge stroke
  • ballscrew backgauge driven by AC servo motor
  • Rexroth hydraulics
  • Sumitomo oil pump
  • 3 front squaring support arms with scale
  • contoured front finger guards
  • rear safety beam
  • machine size: 5720 x 2400 x 2500mm (L x W x H *not including rear take out system)
  • machine weight: 14500 ton (*not including rear take out system)

CNC control:

  • Delem DA360 (Netherlands)
  • Bright LCD screen
  • Back/Front gauge control
  • Retract function
  • Cutting angle and blade gap control
  • Force control
  • Sheet thickness measurement
  • Return to sender function
  • Sheet support control

Sheet Support System

  • CNC controlled rear discharge device incorporating pneumatic sheet support system with raise/fall function and polyurethane conveyor belt for reduced surface marking and material noise.

**DAC360 may be either pendant mounted or inline. TBC by Yawei.
