Yawei HLF-1530 (4kW)
X Close
More Information
We aim to get back to you as soon as possible
Product: Yawei HLF-1530 (4kW)
4kW IPG YLS Fiber laser source, 3000 x 1500mm cutting range, 3000 x 1560 x 120mm axis travel (X x Y x Z), Siemens 840D CNC control system, Precitec cutting head, pallet changer.

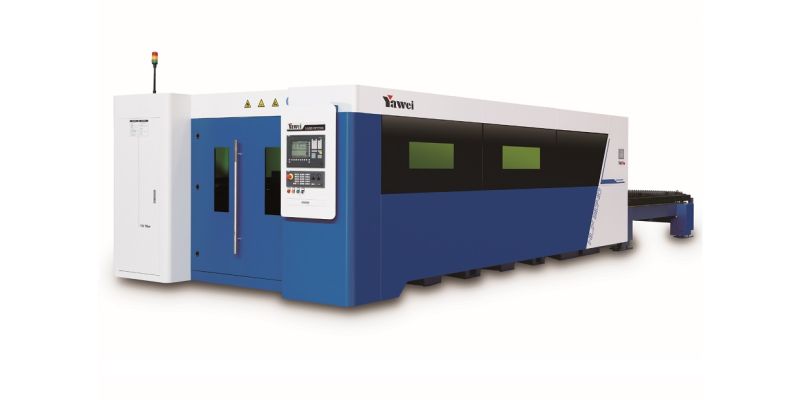

NEW Yawei HLF-1530 Fiber Laser Cutting System.
Features and inclusions:
- IPG YLS fiber laser source with 4kW capacity
- Cutting range: 3000 x 1500mm
- Axis travel: X-3000mm, Y-1560mm, Z-120mm
- Positioning speed: X-120m/min, Y-120m/min, X/Y simultaneous-170m/min
- Maximum load on table: 750kg
- Precitec cutting head
- Siemens 840DSL CNC control system
- Chiller
- Parker air dryer
- Pallet changer
- Dust collector
- Machine size: 9550 x 4700 x 2000mm (L x W x H)
- Machine weight: 10000kg
