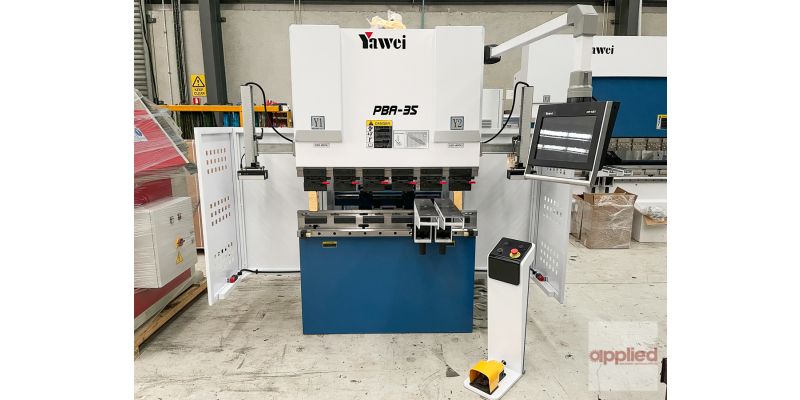

Product: Yawei PBA 35-1250 CNC4 (58T) Pressbrake
35 ton bending force, 1250mm maximum bending length, Delem DA-58T CNC control, Lazersafe guarding, Rolleri tooling

NEW Yawei Synchro PBAS 35-1250 CNC4 Pressbrake.

Features include:

  • 35 ton bending force
  • 1250mm maximum bending length
  • 950mm between frames
  • 300mm throat
  • 120mm ram stroke
  • 450mm open height
  • 4 axis CNC: Y1, Y2, X & R
  • 2 backgauge fingers moving freely on linear guide
  • 2 front sheet supports free moving on linear guide



Tooling:

  • Rolleri (Italy) top and bottom tooling
  • quick clamps



Controller:

  • Delem DA-52S CNC control
  • pendant mounted
  • capable of controlling 4 axes
  • equipped with Delem user-friendly interface including hotkey navigation
  • USB interface enables quick and easy memory stick backup of product and tool information
  • 6.4 inch VGA colour TFT



Guards:

  • Lazersafe light guards
  • rear and side physical guards with safety interlock



General:

  • Hoerbiger hydraulic system (Germany)
  • ballscrew backgauge, AC servo motor driven and running on a linear guide.
  • motor power: 4kW
  • machine size: 1720 x 1390 x 2340mm
  • machine weight: 2700kg
