Product: Yawei PBC 110-3100 CNC7 Servo Pressbrake
CNC synchronised pressbrake, main servo motor, 110 ton bending force, 3100mm maximum bending length, 410mm throat, 215mm stroke, 535mm open height, Delem DA-66T CNC controller, CNC controlled mechanical crowning compensation

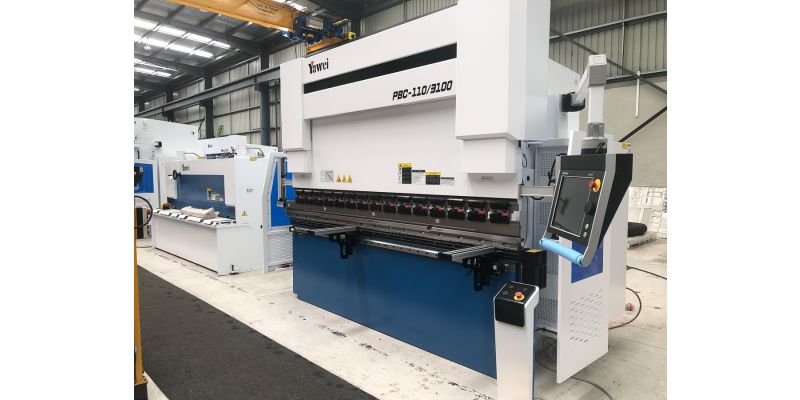

New Yawei Synchro Servo Hydraulic Pressbrake model PBC 110-3100 CNC7.

Features include:

- 110 ton bending force
- 3100mm bending length
- 2600 mm between frames
- 410mm throat depth
- 215mm ram stroke
- 535mm open height
- 7 axis CNC (Y1, Y2, X, Z1, Z2, R & CNC Mechanical Crowning Compensation)
- 2 front sheet supports

Controller:

- Delem DA-66T touch screen graphical CNC control
- 2D graphical touch screen programming mode
- 3D visualisation in simulation and production
- 17 inch high resolution colour TFT
- Full Windows application suite
- Delem Modusys compatibility (module scalability and adaptivity)
- USB, peripheral interfacing
- User specific application support within the controllers multitasking environment
- Sensor bending & correction interface

Tooling:

- Full set of Rolleri (Italian) top tooling in 835mm lengths
- Full set of Rolleri (Italian) bottom tooling in 835mm lengths

Guards:

- Lazersafe Light Guard System (Australia)
- Physical rear and side guards with interlock

General:

- Hoerbiger hydraulic system (Germany)
- Innovance servo motor
- Voith oil pump
- Deformation compensation on throat
- precision ballscrew backgauge, AC servo motor driven and running on a linear guide
- Air conditioned electric cabinet
- 8.4kW main servo motor power
- 300L oil tank
- Weight: 8,800kg
- Size: 3610 x 1550 x 2935mm

These pressbrakes are of the highest quality and are perfectly suited to high production, high accuracy work environments.
