Product: Yawei PBE 50-2050 CNC7 Pressbrake
50 ton x 2050mm capacity, Delem DA-66T CNC controller, Lazersafe guards, AC servo driven electric pressbrake, absolute precision CNC bending for the most demanding of conditions

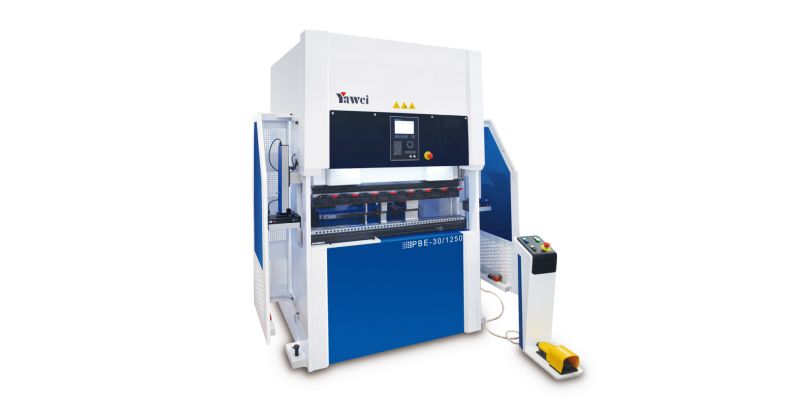

NEW Yawei Synchro PBES 30-1250 CNC4 Servo Pressbrake.

Features include:

  • 30 ton bending force
  • 1250mm maximum bending length
  • 1036mm between frames
  • 425mm throat
  • 120mm ram stroke
  • 325mm open height
  • Delem DA-56 CNC controller
  • 4 axis CNC (Y1,Y2,X,R)
  • AC servo motor driven (power saving)
  • faster and more accurate than hydraulic machines
  • backgauge fingers moving freely on linear guide
  • front sheet supports moving freely on linear guide
  • Lazersafe guarding system (Australia)
  • full top and bottom tooling
  • SMD wedge clamps
  • motor power: 4x2kW
  • machine size: 1540 x 1240 x 2270mm
  • machine weight: 3000kg
