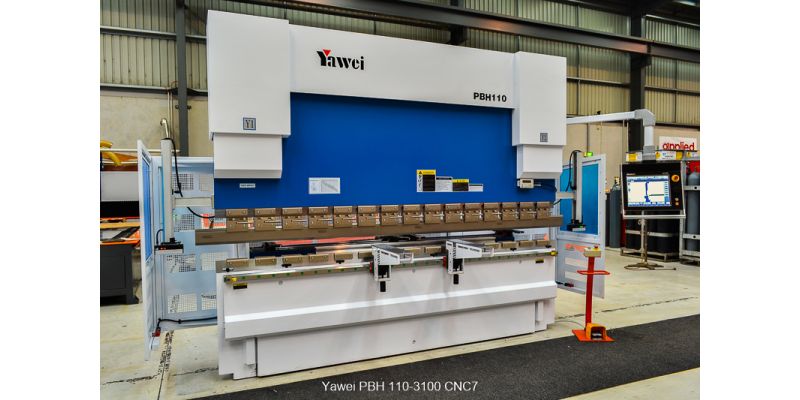

Product: Yawei PBH 160-3100 CNC7 (66T)
Hydraulically synchronised CNC pressbrake, 160 ton, 3100mm bed length, Delem DA-66T graphical CNC control, 7 axis (Y1, Y2, X, R, Z1, Z2 & CNC crowning), Rolleri tooling

New Machtech Yawei Synchro Pressbrake model PBH 80-2550 CNC5.

Features include:

  • 80 ton bending force
  • 2550mm bending length
  • 2150mm between frames
  • 350mm throat depth
  • 175mm ram stroke
  • 480mm open height
  • 5 axis CNC (Y1, Y2, X, R & CNC hydraulic crowning compensation)
  • 2 front sheet supports moving freely on linear guide

    • Controller:

      • Delem DA-52 CNC control
      • pendant mounted
      • equipped with Delem user-friendly interface including hotkey navigation
      • USB interface enables quick and easy memory stick backup of product and tool information
      • 6.4" VGA colour TFT

        • Tooling:

          • Full set of Rolleri (Italian) top tooling in 835mm lengths
          • Full set of Rolleri (Italian) bottom tooling in 835mm lengths
          • Quick release clamps for fast, efficient tool changes
          • ** A conventional wide table with full length multi-V die block available on request

          Guards:

          • Lazersafe Light Guard System (Australia)
          • Physical rear and side guards with interlock

          General:

          • Hoerbiger hydraulic system (Germany)
          • Heidenhain linear scales
          • Sumitomo oil pump
          • Deformation compensation on throat
          • precision ballscrew backgauge, AC servo motor driven and running on a linear guide.
          • 7.5kW main motor power
          • 230L oil tank
          • Weight: 6,800kg
          • Size: 3140 x 1540 x 2240mm

            • All Machtech Yawei Synchro PBH series pressbrakes maintain perfect control of the beam positioning at all times. This is achieved by fully closed loop electro-hydraulic servo control of Y1 & Y2. The beam position is measured by independent linear scales, attached to decoupled measuring frames.


              These pressbrakes are of the highest quality and are perfectly suited to high production, high accuracy work environments.
