Product: Yawei PBH 250-4100 CNC5 (58T)
Hydraulically synchronised CNC pressbrake, 250 ton, 4100mm bed length, Delem DA-58T CNC control, 5 axis (Y1, Y2, X, R & CNC crowning), Rolleri tooling

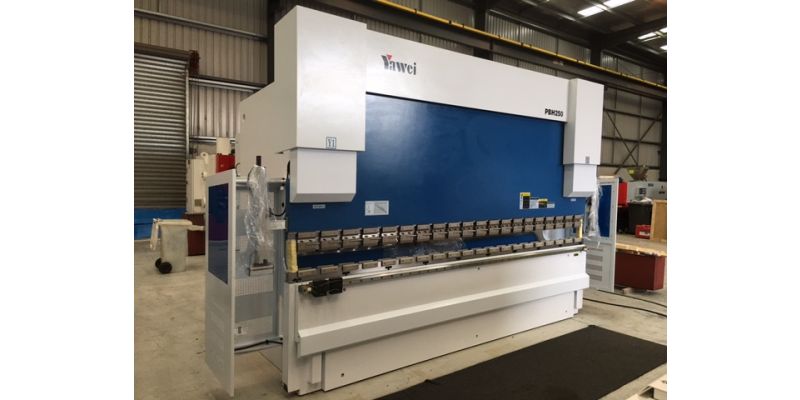

New Machtech Yawei Synchro Pressbrake model PBH 250-4100 CNC5.

Features include:

  • 250 ton bending force
  • 4100mm bending length
  • 3600mm between frames
  • 410mm throat depth
  • 215mm ram stroke
  • 530mm open height
  • 5 axis CNC (Y1, Y2, X, R & CNC hydraulic crowning compensation)
  • 2 front sheet supports moving freely on linear guide

Controller:

  • Delem DA-52 CNC control
  • pendant mounted
  • equipped with Delem user-friendly interface including hotkey navigation
  • USB interface enables quick and easy memory stick backup of product and tool information
  • 6.4" VGA colour TFT

Tooling:

  • Full set of Rolleri (Italian) top tooling in 835mm lengths
  • Full set of Rolleri (Italian) bottom tooling in 835mm lengths
  • Quick release clamps for fast, efficient tool changes
  • ** A conventional wide table with full length multi-V die block available on request

Guards:

  • Lazersafe Light Guard System (Australia)
  • Physical rear and side guards with interlock

General:

  • Hoerbiger hydraulic system (Germany)
  • Heidenhain linear scales
  • Sumitomo oil pump
  • Deformation compensation on throat
  • precision ballscrew backgauge, AC servo motor driven and running on a linear guide.
  • 18.5kW main motor power
  • 500L oil tank
  • Weight: 18,200kg
  • Size: 4630 x 1830 x 2730mm
    • All Machtech Yawei Synchro PBH series pressbrakes maintain perfect control of the beam positioning at all times. This is achieved by fully closed loop electro-hydraulic servo control of Y1 & Y2. The beam position is measured by independent linear scales, attached to decoupled measuring frames. These pressbrakes are of the highest quality and are perfectly suited to high production, high accuracy work environments.
