Product: Yawei PBH 300-6200 CNC5 (66T)

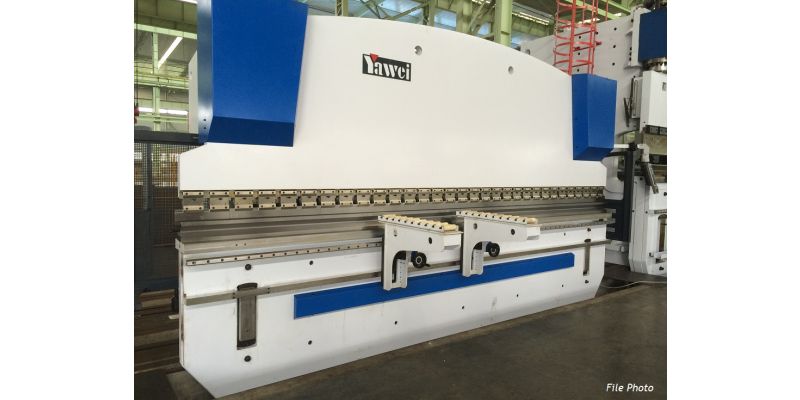

300 ton x 6200mm heavy duty CNC synchronised pressbrake with Delem DA-66T graphical CNC controller and Lazersafe light guards.

New Yawei Synchro Servo Driven Hydraulic CNC Pressbrake model, PBH 300-6200 CNC5.

Features include:

  • 300 ton bending force
  • 6200mm bending length
  • 5100mm between frames
  • 410mm throat depth
  • 265mm ram stroke
  • 500mm open height
  • 5 axis CNC (Y1, Y2, X, R & CNC hydraulic crowning compensation)
  • 2 front sheet supports moving freely on linear guide
  • 4 backgauge fingers running on linear guide

Controller:

  • Delem DA-66T touch screen graphical CNC control
  • 2D graphical touch screen programming mode
  • 3D visualisation in simulation and production
  • 17 inch high resolution colour TFT
  • Full Windows application suite
  • Delem Modusys compatibility (module scalability and adaptivity)
  • USB, peripheral interfacing
  • User specific application support within the controllers multitasking environment
  • Sensor bending & correction interface

Tooling:

  • Full set of Rolleri (Italian) punches in 835mm lengths
  • Full length Rolleri (Italian) multi-vee die (segmented)
  • Heavy duty tool clamps

Guards:

  • Lazersafe PCSS-AO+LZS-004 front Light Guard System (Australia)


General:

  • Rexroth hydraulic system (Germany)
  • ABB motor
  • Heidenhain linear scales
  • Voith/Hoerbiger oil pump (Germany)
  • Deformation compensation on throat
  • Precision ballscrew backgauge, AC servo motor driven and running on a linear guide.
  • Servo motor driven hydraulic system (power saving)
  • 900L oil tank
  • Weight: 35000kg
  • Size: 6500 x 2000 x 3610mm

All Yawei PBH series synchronised CNC pressbrakes maintain perfect control of the beam positioning at all times. This is achieved by fully closed loop electro-hydraulic servo control of Y1 & Y2. The beam position is measured by independent linear scales, attached to decoupled measuring frames.

These pressbrakes are of the highest quality and are perfectly suited to high production, high accuracy work environments.
