How Yawei Hydraulic Press Brake Machines Lead the Way in Sheet Metal Fabrication

The hydraulic press brake is a powerful machine tool designed for bending sheet and plate materials (most commonly metal). Hydraulic press brakes work by clamping the material securely between a punch and a die, as hydraulic cylinders provide immense pressing force in order to shape the workpiece. Depending on the setup, the machine can be operated manually, but in most modern manufacturing environments it is equipped with CNC (Computer Numerical Control) technology for greater accuracy and efficiency.

Yawei has built a strong reputation in the industry for producing reliable, high-quality press brakes. One of their standout features is CNC hydraulic crowning, which ensures consistent precision across the bend. Over the years, operators have come to value not only the accuracy of Yawei machines but also the ease of use that makes day-to-day work more efficient and enjoyable.

What Sets Yawei Hydraulic Press Brakes Apart?

CNC / Electro-Hydraulic Synchronised Drives: Many Yawei press brake models are equipped with advanced electro-hydraulic servo or proportional valve systems. These systems use closed-loop synchronization between the ram cylinders (Y1 and Y2 axes), ensuring the ram moves with perfect balance. This technology delivers highly consistent bending accuracy across the entire width of the machine, even on long workpieces.
Multiple Axis & Compensation Systems: Yawei machines can be fitted with a wide range of CNC-controlled axes, including Y1, Y2, X, R, Z1, and Z2. In addition, CNC hydraulic crowning compensation is integrated to offset natural frame deflection during bending. Together, these features give operators greater flexibility, repeatability, and accuracy across different types of jobs.
Robust Build Quality: The frames are manufactured from high-strength steel, providing durability and long-term stability. Moving components are supported by dual or multiple guide rails, while high-precision linear scales and quality CNC hardware further enhance the machine’s rigidity and accuracy. This robust design helps maintain consistent performance, even under demanding workloads.
Safety & Tooling Standards: Safety is a priority on Yawei press brakes. Depending on the market, machines may include systems such as the Lazersafe Light Guard System (widely used in Australia) as well as physical rear and side guards with interlocks. Quick-release clamping systems make tool changes faster and more efficient, while user-friendly CNC controls simplify setup and operation. These features together improve workplace safety, reduce downtime, and boost productivity.
Scale & Range: Yawei offers a wide selection of press brakes to suit different applications, ranging from compact models designed for smaller workshops to heavy-duty machines capable of handling large sheets and high tonnage requirements. This variety makes it easier for businesses to find a model that matches their production needs.

<h2>What To Consider When Selecting a Yawei Hydraulic Press Brake</h2>

If you’re considering investing in a Yawei Hydraulic Press Brake for your workshop or factory, there are several key considerations that we recommend factoring in before you buy…

Factor	Why It Matters
Tonnage / Bending Force	When selecting a press brake, one of the most critical factors is the tonnage, or bending force, of the machine. This needs to be sufficient to handle not only the thickest sheet metal you expect to process but also the hardest alloys. An under-powered press brake can lead to incomplete or inaccurate bends, wasted material, and unnecessary downtime. Having the right tonnage ensures consistent results, longer tool life, and the confidence that your machine will not be pushed beyond its limits.
Bending Length / Width Between Frames	The bending length defines how long a sheet you can work with, while the distance between the machine’s frames dictates the maximum panel size it can accommodate. For workshops producing larger components, a longer bed length is essential. If you mainly work with smaller pieces, a shorter bed may be more cost-effective while still offering the accuracy you need. Matching the bending length and frame width to your production requirements avoids future limitations and maximises flexibility.
Number of Axes & Control System	Modern press brakes often feature multiple CNC-controlled axes, each adding flexibility in backgauging, positioning, and part handling. More axes allow operators to create complex profiles, avoid collisions, and achieve precise repeatability. The sophistication of the control system is equally important—intuitive CNC interfaces simplify programming, reduce operator training needs, and cut down on setup time. Together, these features mean faster job changes, fewer errors, and higher productivity.
Crowning / Compensation	During bending, even the strongest press brake frames will naturally flex under load. Without compensation, this deflection can result in parts that are bent correctly in the centre but uneven at the edges. Crowning systems, whether manual or CNC-controlled, offset this effect to ensure uniform angles across the entire length of the bend. This feature becomes especially important when working with long sheets, variable thicknesses, or demanding tolerances.
Tooling System & Changeover	High-quality tooling lasts longer and produces more accurate results, but it can represent a significant investment. Equally important is how quickly tools can be changed when moving between jobs. Quick-release clamping systems and standardized tool holders speed up changeovers dramatically, reducing downtime and helping operators respond faster to varied production demands.
Safety Features & Compliance	Features such as laser guarding systems, rear and side guards with interlocks, and hydraulic safety mechanisms are essential for protecting operators and meeting workplace compliance standards. In regions like Australia, where strict regulations apply, having a machine with certified safety features not only reduces risks but also ensures your workshop stays compliant and avoids costly penalties.
Choose Local distributor & services	Choosing a press brake from a local distributor with proven expertise ensures you’ll have access to reliable calibration, spare parts, and technical service when you need it. In Australia, Applied Machinery is recognised as one of the leading Yawei distributors, offering both product knowledge and ongoing support. This local presence can make a significant difference in reducing downtime and keeping your operations running smoothly.
Energy Efficiency / Operating Costs	Systems such as servo-hydraulic drives, proportional valve controls, and efficient pump designs help reduce power consumption. Proper oil cooling and smart hydraulic management also extend component life while lowering energy bills. Investing in an efficient system not only saves money but also reduces your environmental footprint.

Benefits & Potential Limitations

Benefits

Yawei press brakes provide excellent versatility, allowing operators to efficiently handle a wide range of job sizes, from small precision components to large metal panels, making them suitable for diverse production requirements.
The machines are constructed from high-strength steel and fitted with precision components, which ensures consistent accuracy, long-term durability, and reliable performance even under heavy workloads.
They come equipped with a comprehensive feature set, including multiple CNC-controlled axes, hydraulic or CNC crowning compensation, quick-change tooling systems, and advanced safety features, all of which enhance productivity and operator confidence.
With a strong global presence and a wide range of models available, Yawei offers businesses the flexibility to select a press brake that meets their specific production needs and budget.

Potential Limitations

Operators need proper training and experience to fully utilise the advanced CNC controls and multi-axis capabilities, as inexperienced users may find programming and optimising complex bends challenging.
Regular maintenance is essential to keep hydraulic systems, oil quality, and machine calibration in optimal condition, as neglecting these tasks can lead to reduced accuracy and potential breakdowns.
The size and weight of Yawei press brakes require significant floor space and a solid foundation, which may present challenges for smaller workshops or facilities that are not designed to accommodate large industrial machinery.

Yawei PBH & PBA Series Highlights from Applied Machinery

Yawei PBH CNC5

This model features a Hoerbiger hydraulic system with fully synchronised CNC control across four axes (Y1, Y2, X, R) and integrated CNC crowning for consistent bend accuracy. It includes Rolleri tooling and a Delem controller, making it ideal for handling large, precise, and heavy-duty sheet metal work.

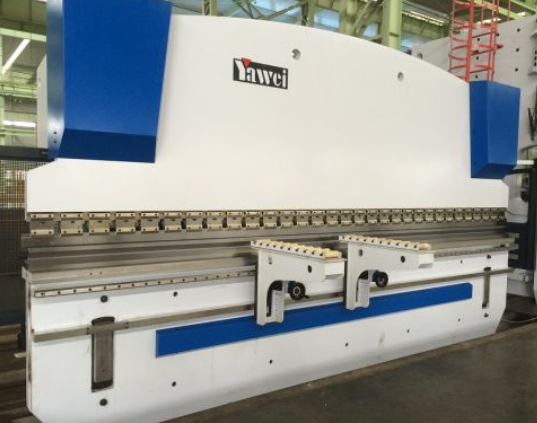

Yawei PBH CNC7

A hydraulically synchronised CNC press brake offering seven-axis control (Y1, Y2, X, R, Z1, Z2) along with CNC hydraulic crowning compensation, providing maximum flexibility and precision for complex bending tasks and larger sheet sizes.

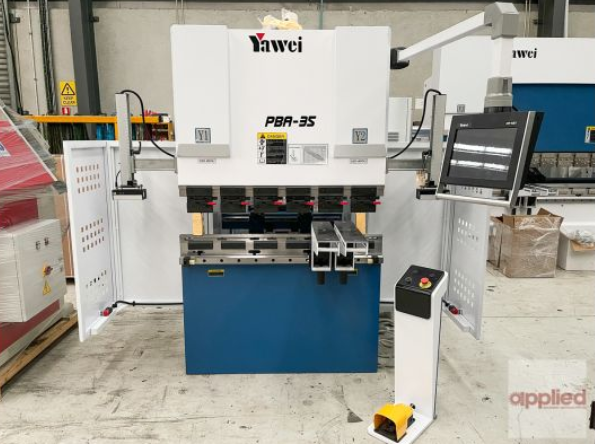

Yawei PBA 35‑1250 CNC4 (58T)

A compact press brake designed for lighter production needs, this model delivers 35 tons of bending force over a 1250 mm working length. It is equipped with a Delem DA‑58T controller, comprehensive safety guards, and tooling optimised for smaller panels or less demanding sheet metal applications.
