Product: Yawei HGS(K) 6-6100 (DAC360)
6mm x 6100mm capacity, Delem DA360 CNC control system, 10-1000mm backgauge range, rear discharge system with sheet supports, Australian made rear stacking system for handling of delicate sheets.

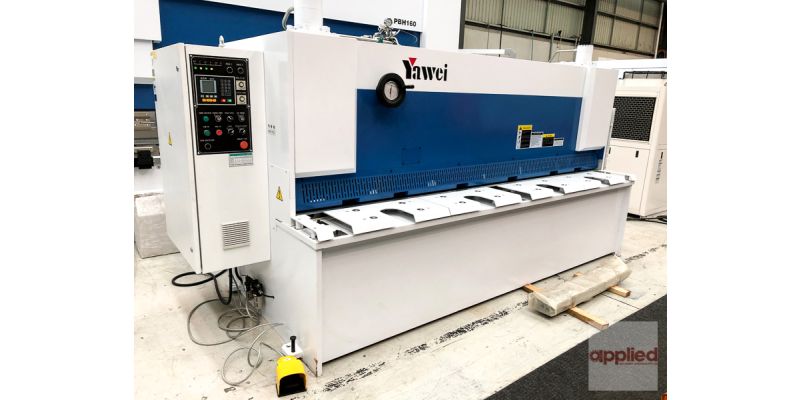

New Yawei Guillotine Shear, model HGS(K) 6-6100

Features include:

  • Maximum cutting thickness: 6mm (ms)
  • Maximum cutting length: 6100mm
  • Variable rake angle: 0.5-2.0 degrees
  • Number of clamps: 27
  • Strokes per minute: 10
  • Backgauge stroke: 10-1000mm
  • Rear safety guards
  • Rexroth hydraulic system
  • Sumitomo (Japan) or Voith (Germany) hydraulic pump
  • 3 x 1200mm long front sheet supports
  • Main motor power: 15kW
  • Rear discharge system with sheet supports
  • Delem DA360 CNC controller: automatically controlling backgauge positioning, blade gap and rake angle

Australian made rear stacking system, consisting of:

  • 6000mm long x 800mm wide scissor lift, operated by ball screws
  • Unloading sheets from conveyor and stacking onto scissor lift by suction cup system
