Product: Yawei PBH 500-8200 CNC5 (53T)
Hydraulically synchronised CNC pressbrake, 500 ton, 8200mm bed length, Delem DA-53T graphical CNC control, 5 axis (Y1, Y2, X, R & CNC crowning), Rolleri tooling

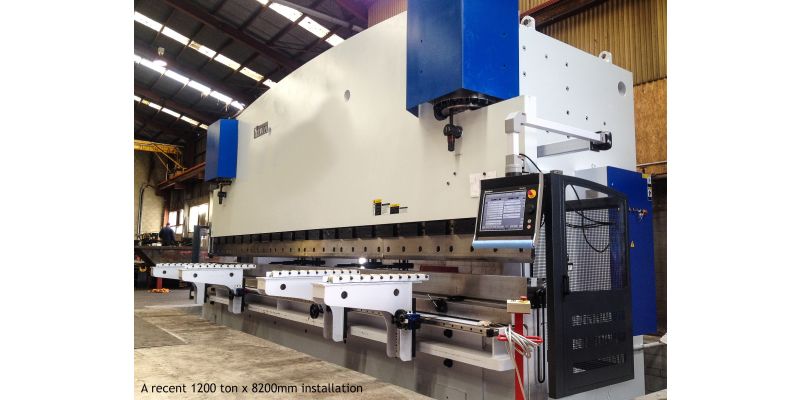

New Machtech Yawei Synchro Pressbrake model PBH 500-8200 CNC5.

Features include:

  • 500 ton bending force
  • 8200mm bending length
  • 6500mm between frames
  • 510mm throat depth
  • 315mm ram stroke
  • 520mm open height
  • 5 axis CNC (Y1, Y2, X, R & CNC hydraulic crowning compensation)
  • 2 front sheet supports moving freely on linear guide with support rollers


  • Delem DA-52 CNC control
  • pendant mounted
  • equipped with Delem user-friendly interface including hotkey navigation
  • USB interface enables quick and easy memory stick backup of product and tool information
  • 6.4" VGA colour TFT


  • Full set of Rolleri (Italian) top tooling in 835mm lengths
  • Full set of Rolleri (Italian) bottom tooling in 835mm lengths
  • Heavy duty wedge clamps
  • ** A conventional wide table with full length multi-V die block available on request


  • Lazersafe Light Guard System (Australia)
  • Physical rear and side guards with interlock


  • Hoerbiger hydraulic system (Germany)
  • Voith oil pump
  • Deformation compensation on throat
  • precision ballscrew backgauge, AC servo motor driven and running on a linear guide.
  • 37kW main motor power
  • 1300L oil tank
  • Weight: 76,000kg
  • Size: 8500 x 2290 x 5400mm

All Machtech Yawei Synchro PBH series pressbrakes maintain perfect control of the beam positioning at all times. This is achieved by fully closed loop electro-hydraulic servo control of Y1 & Y2. The beam position is measured by independent linear scales, attached to decoupled measuring frames.

These pressbrakes are of the highest quality and are perfectly suited to high production, high accuracy work environments.
