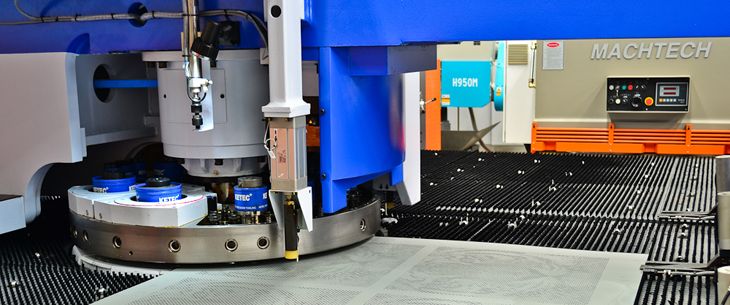

Yawei Nisshinbo HPE Series Servo Driven CNC Turret Punch Presses

The HPE servo driven series is the newest addition to the range of premium CNC Turret Punch Presses from Yawei Nisshinbo and Applied Machinery.


THe HPE series incorporates the latest in CNC punching technology, utilising servo driven punching units from Germany (LUSTSP).

The HPE series are fast, quiet and extremely power efficient. They are suited to high production environments.

Available in 3048 and 3058 configurations with 30 ton punching capacities and either 4' x 8', or 5' x 8' axis travel respectively.

Key features and inclusions:

  • LUSTSP servo punching system (Germany)
  • Siemens 802D CNC control system
  • Metalix CAD software with automatic nesting function
  • 36 station turret with 2 auto index (B)
  • Auto x position
  • 3 moveable pneumatic clamps
  • Brush table
  • Strip away detection
  • Automatic lubrication system
  • 1500spm

The bridge frame design offers superior rigidity and stability. This coupled with highly accurate punching control makes these machines suitable for‚ high speed punching, forming and embossing applications, as well as Wilson wheel type applications such as pinching wheels, slitting wheels and forming operations.

Punching/Nibbling speeds up to 1500 hits per minute with punch depth control to +/-0.1mm.

Common optional extras include:

  • Air blow oil mist system
  • Multitool device
  • Programmable movable clamps
  • Stainless tables with balls for heavier sheets
  • Leuze light guard system
  • 40 station turret with 2 auto index (D)
  • 38 station turret with 2 auto index (D) and 1 fixed E station

The Yawei Nisshinbo HPE series machines are manufactured to the highest standards and are engineered for perform in high production environments.

High speed, high accuracy and low power consumption all come together to make the HPE series of turret punch presses an extremely attractive option for companies looking to gain the edge in such a competitive manufacturing environment. Servo drive CNC turret punch presses cut down power usage considerably when compared to hydraulic machines.

Please contact our friendly sales team on 03 9706 8066 for more information, or email sales@appliedmachinery.com.au
